这是一个中文项目，优先用中文写博客。
将在下周完成项目的计划部分。
这也算是开一个坑，先介绍一下项目目标：
1.可以读取储存在文件中的简谱（第一期工程，done）
可以根据响指的声音，对摄像头内容进行抓拍，自动裁切并增强持谱人手里的乐谱进行储存（第三期工程）
2.对乐谱进行基础识别，这里的基础是指正确识别乐谱的数字和高低音（第一期工程）
对乐谱进行完整的识别，这里的完整指包括休止符，滑音，连音，重音的识别（第二期工程）
对乐谱进行更通用的识别，这里的通用指自动忽略汉字等无效信息，可以识别副歌和节拍部分（第三期工程）
3.对乐谱进行播放和表演。鉴于Range同学的平台具有多样性，可以同时使用Linux和Windows平台，Range将选择两种方式进行表演。
方式零：将裁切识别的结果直接展示（第一期，done），组成新的简化的乐谱（第一期，未完成）
方式一：直接在树莓派使用蜂鸣器进行表演，这也是在Linux平台几乎唯一的可选方式，因为Linux平台没有内置容易调用的MIDI相关API，本着尽量使用原生库的原则，Range决定只在Linux保留这种方案。
方式二：在Windows平台直接使用MIDI接口实现。因为照片截取和实现识别在树莓派4B实行，需要通过网络协议将识别结果传送至Windows，因此这也需要相关的网络协议，更需要Range找到合适的乐曲编码方案将数据打包并且传输。
网络协议Range目前有两种实现方式，第一种也是比较成熟的方案，将树莓派安装MQTT的服务端和客户端，Windows使用客户端和树莓派通信。第二种比较原始，也许不应该叫协议，我们使用c标准库的socket进行字节的传输。
方案三：使用串口和Windows通信，Range不是电子相关学生，不采用。
项目实现：
音符的定位和裁切：目前使用二值化加x方向和y方向投影的方式进行定位，很蠢但是很有效
特殊符号的处理：方案也是有很多。方案一是只识别数字，然后根据数字的比例，对相应数字上下的符号进行裁切，如果是比较长的符号，可以尝试一下写一个栈进行匹配
数据的处理和压缩：使用PCA，百用不厌，Linear Algebra立大功！目测降维到10维效果不错，处理也贼快
分类器和匹配：使用KNN和NCC（手写），使用模板匹配（from opencv）
以上方法都挺蠢，如果有时间会尝试CNN的入门，多读读论文没毛病，有512MB超大显存的树莓派不用白不用
性能要求：
在8G_64BIT_OS的树莓派4B上识别时间不得超过3s
我应该学到什么：
1.设计完整产品和系统，对产品的需求和应用有充分认知。
2.对信息（乐谱）的编码和表示，将是我对编码和效率的第一次探索，纵然没有相关知识和经验，至少可以开动脑筋。
3.对图像识别和ocr算法的进一步学习和总结对比。
4.了解网络的传输和对比。
5.更加熟练的远程coding，使用Linux。
6.使用Windows特有的api，感受Windows多媒体开发的魅力，体验Windows和Linux的差异，加强对二者的认知。
7.在如此多的选择中拍定最终方案，并实现它。
8.主动阅读论文，增加论文气氛和实力。
以下是第一期草稿工程的代码，感谢giegie提供的项目和投影判断的方法
import cv2
from skimage.metrics import structural_similarity as ssim
from sklearn.decomposition import PCA
import matplotlib.pyplot as plt
import os
import numpy as np
import imutils
def read_img(img_path):
"""
This function read img file then strengthen the picture
args:
img_path: you should provide file path here
The return value threshold_img,img_shape,origin img
"""
img = cv2.imread(img_path)
gray_img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img, 120, 1, cv2.THRESH_BINARY_INV)
img_shape=threshold_img.shape
return threshold_img,img_shape,img
def project_to_y(threshold_img,img_shape):
"""
This function project picture to y axis
args:
threshold_img
img_shape
return edge_inf_y,row
"""
row=0
img_hight=img_shape[0]
img_width=img_shape[1]
threshold_img_arr = np.uint8(np.array(threshold_img))
#project the image to y-axis
y_projection=np.sum(threshold_img_arr,axis=1)
#find the horizontal line(area)
in_num_flag=0
edge_temp=0
edge_inf_y=[]
for i in range(img_hight):
if in_num_flag==0 and y_projection[i]>10:
in_num_flag=1
edge_temp=i
elif in_num_flag==1 and y_projection[i]<10 and (i - edge_temp) >50:
in_num_flag=0
#if (i - edge_temp) >50:
edge_inf_y.append([edge_temp,i+1])
row=row+1
return edge_inf_y,row
def project_to_x(threshold_img,img_shape,edge_inf_y,row):
"""
This function project picture to x axis
args:
threshold_img
img_shape
return the full inf about edges
"""
img_hight=img_shape[0]
img_width=img_shape[1]
x_projection=[]
#first we need to enhance image again
kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
dilate_img = cv2.dilate(threshold_img, kernel)
#find the number row by row
edge_inf=[]
for i in range(row):
cropImg= dilate_img[edge_inf_y[i][0]:edge_inf_y[i][1], 0:img_width]
crophight,cropwidth=cropImg.shape
cropImg_arr=np.uint8(np.array(cropImg))
#project the image to x-axis
x_projection=np.sum(cropImg_arr,axis=0)
#find the vertical line(area)
in_num_flag=0
edge_temp=0
for j in range(img_width):
if in_num_flag==0 and x_projection[j]>9 and x_projection[j]<50:
in_num_flag=1
edge_temp=j
elif in_num_flag==1 and x_projection[j]<9 and (j - edge_temp) >3:
in_num_flag=0
edge_inf.append([edge_inf_y[i][0],edge_inf_y[i][1],edge_temp,j+1])
return edge_inf
def expo_obj(edge_inf,img,save_path):
"""
export what we recongnized
"""
for i in range(len(edge_inf)):
cropImg= img[edge_inf[i][0]:edge_inf[i][1], edge_inf[i][2]:edge_inf[i][3]]
cv2.imwrite(str(save_path)+str(i)+".jpg", cropImg)
def ncc(test_char_cmprs,train_char_cmprs):
"""# NCC classifier
# arg: test_char_cmprs,train_char_cmprs
# Return value: the name label of the closest number(list)"""
row_test,_= np.shape(test_char_cmprs)
row_train,_= np.shape(train_char_cmprs)
test = float("inf")
result=[]
flag=0
for j in range(row_test):
test = float("inf")
for i in range(row_train):
dist_test = np.sqrt(np.sum(np.square(test_char_cmprs[j,:] - train_char_cmprs[i,:])))
if dist_test < test:
test = dist_test
flag=i
result.append(flag)
return result
def gen_pca_field(edge_inf,img,numbers,train_path,x,y,r):
"""
generate two 2-d arrays(reduced dimension,to r)
"numbers" is the number of training pictures
x and y present the size of pictures, only if all pictures are same size we can train the data
"""
#crop pictures and arrange them into 2-d arrary
gray_img_whole = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img_whole, 120, 255, cv2.THRESH_BINARY_INV)
test_char=np.zeros((len(edge_inf), x*y))
for i in range(len(edge_inf)):
temp_img=threshold_img[edge_inf[i][0]:edge_inf[i][1], edge_inf[i][2]:edge_inf[i][3]]
char_rcgnz=cv2.resize(temp_img,(x, y))
img_Vector = np.reshape(char_rcgnz,(1,x*y))
test_char[i,:]=(img_Vector)
#then read the train pictures and arrange them into 2-d arrary
train_char=np.zeros((numbers, x*y))
for i in range(numbers):
train_read = cv2.imread(str(train_path)+str(i)+".jpg")
gray_img = cv2.cvtColor(train_read, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img, 120, 255, cv2.THRESH_BINARY_INV)
char_rcgnz=cv2.resize(threshold_img,(x, y))
img_Vector = np.reshape(char_rcgnz,(1,x*y))
train_char[i,:]=(img_Vector)
#do pca
pca = PCA(n_components=r)
pca.fit(train_char)
test_char_cmprs = pca.transform(test_char)
train_char_cmprs = pca.transform(train_char)
return test_char_cmprs,train_char_cmprs
if __name__ == '__main__':

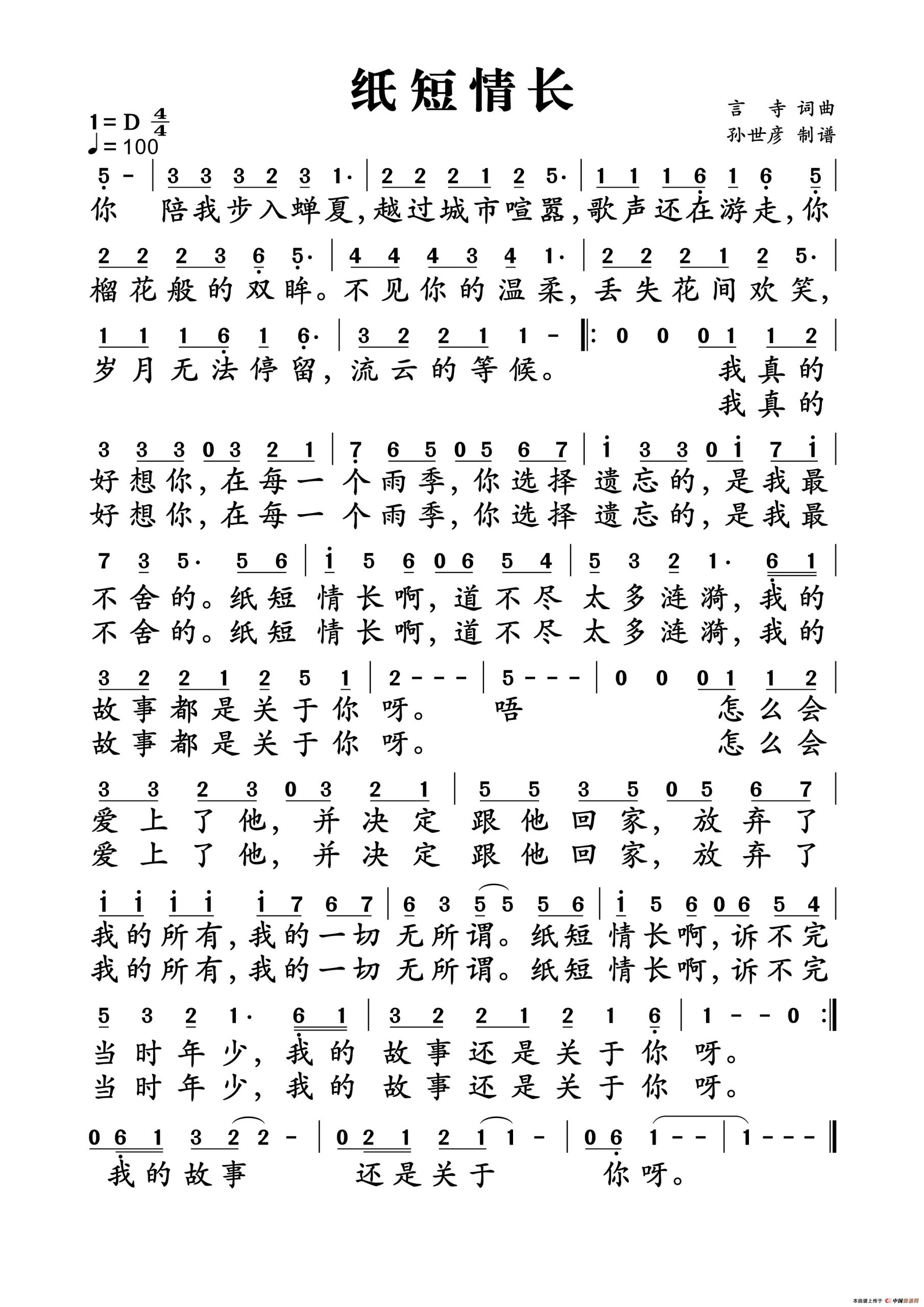

img_path="D:\\pythonProject4\\jianpu3.jpg"
#img_path="/home/range/Code/pythonProject4/jianpu3.jpg"
#img_path="D:\\pythonProject4\\xunlian\\xunlian4.jpg"
save_path="D:\\pythonProject4\\save\\"
#read picture
threshold_img,img_shape,img=read_img(img_path)
#project to y&x axis
edge_inf_y,row=project_to_y(threshold_img,img_shape)
edge_inf=project_to_x(threshold_img,img_shape,edge_inf_y,row)
#import recognized characters into files
expo_obj(edge_inf,img,save_path)
#Do pca
test_char_cmprs,train_char_cmprs=gen_pca_field(edge_inf,img,len(edge_inf),save_path,61,165,10)
#result
result=ncc(test_char_cmprs,train_char_cmprs)
for i in range(len(result)):
temp = cv2.imread(str(save_path)+str(result[i])+".jpg")
cv2.imshow(str(i),temp)
#show

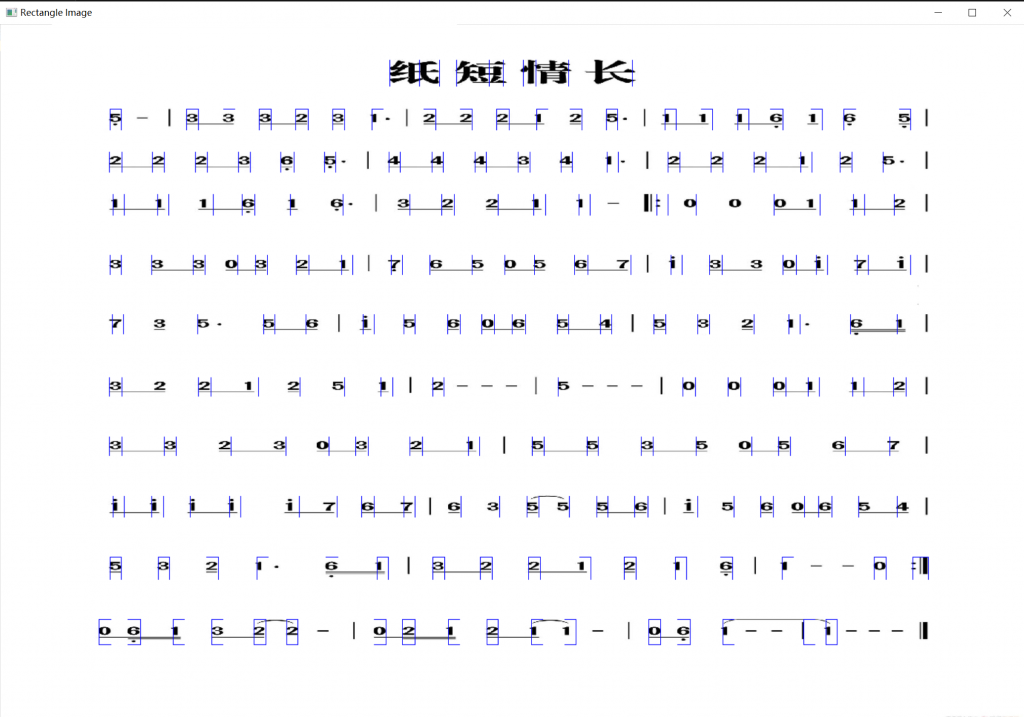

rectangle_img=img
for i in range(len(edge_inf)):
rectangle_img = cv2.rectangle(rectangle_img, (edge_inf[i][2], edge_inf[i][0]), (edge_inf[i][3], edge_inf[i][1]),(255, 0, 0), thickness=1)
cv2.namedWindow('Rectangle Image', 0)
cv2.resizeWindow('Rectangle Image', 600, 500)
cv2.imshow("Rectangle Image", rectangle_img)
cv2.waitKey(0)
目前项目存在的致命问题：
1.只能识别那一张图片，参数很死。
2.除了把音符排开，没有任何的展示。
优点：很快，高效（啊对对对）
我想，纵然再没有技术含量，自己去完成一件自己选择的，足够复杂的事情，并且主动做到尽善尽美，也是对自己的磨练。也许别人一周就做出来了，我需要一个月。这也没有关系，这不是我意志完全可控的，也是人外有人，天外有天。希望心中极客之火和科技优化生活的信念永不熄灭。人生不折腾还有啥乐趣，还学啥自己的专业。High on life, bro!
临时计划和方案：

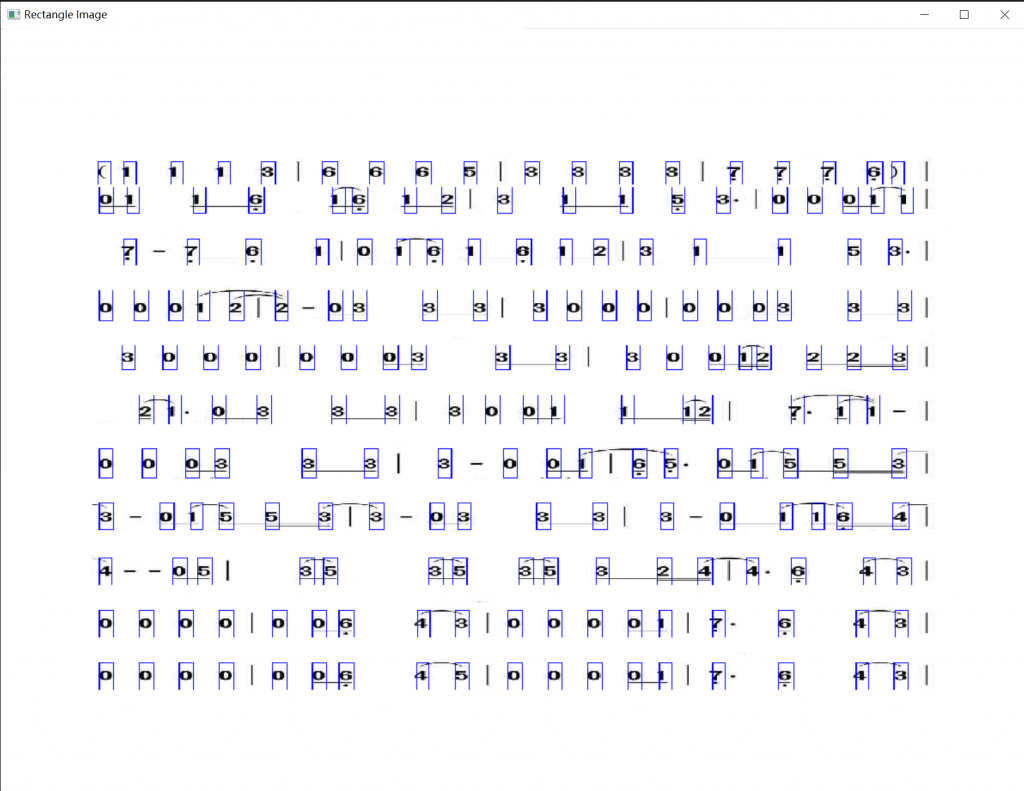

方案一：实现参数自动化，采用百分比的方式，并且给判断分支给予更大的判断空间，基本做到正确裁切，可以自适应大部分简谱，其中类A4效果最好。效果如下
#Numbered musical notation recognization
import cv2
from skimage.metrics import structural_similarity as ssim
from sklearn.decomposition import PCA
import matplotlib.pyplot as plt
import os
import numpy as np
import imutils
def read_img(img_path):
"""
This function read img file then strengthen the picture
args:
img_path: you should provide file path here
The return value threshold_img,img_shape,origin img
"""
img = cv2.imread(img_path)
gray_img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img, 120, 1, cv2.THRESH_BINARY_INV)
img_shape=threshold_img.shape
return threshold_img,img_shape,img
def project_to_y(threshold_img,img_shape,rate_bar,rate_hight):
"""
This function project picture to y axis
args:
threshold_img
img_shape
return edge_inf_y,row
"""
row=0
img_hight=img_shape[0]
img_width=img_shape[1]
bar_width=int(rate_bar*img_width)
char_hight=int(rate_hight*img_hight)
threshold_img_arr = np.uint8(np.array(threshold_img))
#project the image to y-axis
y_projection=np.sum(threshold_img_arr,axis=1)
"""print("inf of y")
for i in range(len(y_projection)):
print(y_projection[i])"""
#find the horizontal line(area)
in_num_flag=0
edge_temp=0
edge_inf_y=[]
for i in range(img_hight):
if in_num_flag==0 and y_projection[i]>bar_width:
in_num_flag=1
edge_temp=i
elif in_num_flag==1 and y_projection[i]<bar_width and (i - edge_temp) >char_hight:
in_num_flag=0
#if (i - edge_temp) >50,10:
edge_inf_y.append([edge_temp,i+int(char_hight*0.2)])
row=row+1
if (i*2 - edge_temp)<img_hight:
i=i*2 - edge_temp
return edge_inf_y,row
def project_to_x(threshold_img,img_shape,edge_inf_y,row):
"""
This function project picture to x axis
args:
threshold_img
img_shape
return the full inf about edges
"""
img_hight=img_shape[0]
img_width=img_shape[1]
x_projection=[]
#first we need to enhance image again
kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
dilate_img = cv2.dilate(threshold_img, kernel)
#find the number row by row
edge_inf=[]
for i in range(row):
cropImg= dilate_img[edge_inf_y[i][0]:edge_inf_y[i][1], 0:img_width]
crophight,cropwidth=cropImg.shape
cropImg_arr=np.uint8(np.array(cropImg))
#project the image to x-axis
x_projection=np.sum(cropImg_arr,axis=0)
#find the vertical line(area)
in_num_flag=0
edge_temp=0
for j in range(img_width):
if in_num_flag==0 and x_projection[j]>(int(crophight*0.20)) and x_projection[j]<(int(crophight*0.68)):
in_num_flag=1
edge_temp=j
elif in_num_flag==1 and x_projection[j]<(int(crophight*0.25)) and (j - edge_temp) >(int(cropwidth*0.01)):
in_num_flag=0
edge_inf.append([edge_inf_y[i][0],edge_inf_y[i][1],edge_temp,j+1])
return edge_inf
def expo_obj(edge_inf,img,save_path):
"""
export what we recongnized
"""
for i in range(len(edge_inf)):
cropImg= img[edge_inf[i][0]:edge_inf[i][1], edge_inf[i][2]:edge_inf[i][3]]
cv2.imwrite(str(save_path)+str(i)+".jpg", cropImg)
def ncc(test_char_cmprs,train_char_cmprs):
"""# NCC classifier
# arg: test_char_cmprs,train_char_cmprs
# Return value: the name label of the closest number(list)"""
row_test,_= np.shape(test_char_cmprs)
row_train,_= np.shape(train_char_cmprs)
test = float("inf")
result=[]
flag=0
for j in range(row_test):
test = float("inf")
for i in range(row_train):
dist_test = np.sqrt(np.sum(np.square(test_char_cmprs[j,:] - train_char_cmprs[i,:])))
if dist_test < test:
test = dist_test
flag=i
result.append(flag)
return result
def gen_pca_field(edge_inf,img,numbers,train_path,x,y,r):
"""
generate two 2-d arrays(reduced dimension,to r)
"numbers" is the number of training pictures
x and y present the size of pictures, only if all pictures are same size we can train the data
"""
#crop pictures and arrange them into 2-d arrary
gray_img_whole = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img_whole, 100, 255, cv2.THRESH_BINARY_INV)
test_char=np.zeros((len(edge_inf), x*y))
for i in range(len(edge_inf)):
temp_img=threshold_img[edge_inf[i][0]:edge_inf[i][1], edge_inf[i][2]:edge_inf[i][3]]
char_rcgnz=cv2.resize(temp_img,(x, y))
img_Vector = np.reshape(char_rcgnz,(1,x*y))
test_char[i,:]=(img_Vector)
#then read the train pictures and arrange them into 2-d arrary
train_char=np.zeros((numbers, x*y))
for i in range(numbers):
train_read = cv2.imread(str(train_path)+str(i)+".jpg")
gray_img = cv2.cvtColor(train_read, cv2.COLOR_BGR2GRAY)
_, threshold_img = cv2.threshold(gray_img, 120, 255, cv2.THRESH_BINARY_INV)
char_rcgnz=cv2.resize(threshold_img,(x, y))
img_Vector = np.reshape(char_rcgnz,(1,x*y))
train_char[i,:]=(img_Vector)
#do pca
pca = PCA(n_components=r)
pca.fit(train_char)
test_char_cmprs = pca.transform(test_char)
train_char_cmprs = pca.transform(train_char)
return test_char_cmprs,train_char_cmprs
if __name__ == '__main__':
img_path="D:\\NMN\\NMN7.jpg"
#img_path="/home/range/Code/pythonProject4/jianpu3.jpg"
#img_path="D:\\pythonProject4\\xunlian\\xunlian4.jpg"
save_path="D:\\NMN\\save\\"
#read picture
threshold_img,img_shape,img=read_img(img_path)
print("This is img size")
print(img_shape)
#project to y&x axis
edge_inf_y,row=project_to_y(threshold_img,img_shape,0.001,0.018)
edge_inf=project_to_x(threshold_img,img_shape,edge_inf_y,row)
#import recognized characters into files
expo_obj(edge_inf,img,save_path)
#Do pca
test_char_cmprs,train_char_cmprs=gen_pca_field(edge_inf,img,len(edge_inf),save_path,61,165,10)
#result
result=ncc(test_char_cmprs,train_char_cmprs)
for i in range(len(result)):
temp = cv2.imread(str(save_path)+str(result[i])+".jpg")
#cv2.imshow(str(i),temp)
#show
rectangle_img=img
for i in range(len(edge_inf)):
rectangle_img = cv2.rectangle(rectangle_img, (edge_inf[i][2], edge_inf[i][0]), (edge_inf[i][3], edge_inf[i][1]),(255, 0, 0), thickness=1)
cv2.namedWindow('Rectangle Image', 0)
cv2.resizeWindow('Rectangle Image', 600, 500)
cv2.imshow("Rectangle Image", rectangle_img)
cv2.waitKey(0)
可以得出结论，这种投影的方式已经到达顶峰，虽然乍一看还不错，能完成切割的任务，但是给后期的识别带来了很大困难。比如因为连音的问题，相同的数字可能有着不同的裁切范围，会干扰判断，其次将字符完整处理，给数据库添加标签也很有难度，毕竟相同的数字和符号的组合也有很多种，绝对不是最优解。另外参数难以把握，无法给不同制谱软件给出普适性的识别方案（有的音节符号长于低音，有的短），此方案结束，开始尝试下一方案。
2.方案2，从数字入手，先识别数字
Views: 182
