Last time we finished phase1. Now let’s move on.

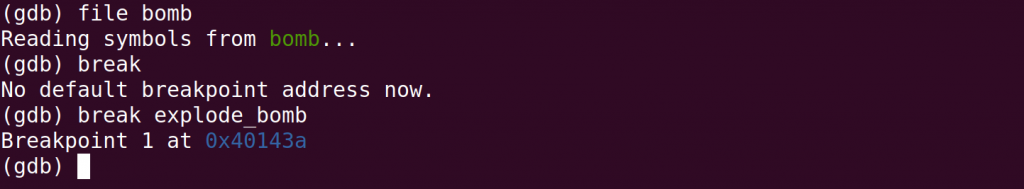

We set breakpoint before explode_bomb() for safety.
Move to the assembly code of phase_2.
0000000000400efc <phase_2>: 400efc: 55 push %rbp 400efd: 53 push %rbx 400efe: 48 83 ec 28 sub $0x28,%rsp 400f02: 48 89 e6 mov %rsp,%rsi 400f05: e8 52 05 00 00 callq 40145c <read_six_numbers> 400f0a: 83 3c 24 01 cmpl $0x1,(%rsp) 400f0e: 74 20 je 400f30 <phase_2+0x34> 400f10: e8 25 05 00 00 callq 40143a <explode_bomb> 400f15: be 19 jmp 400f30 <phase_2+0x34> 400f17: 8b 43 fc mov -0x4(%rbx),%eax 400f1a: 01 c0 add %eax,%eax 400f1c: 39 03 cmp %eax,(%rbx) 400f1e: 74 05 je 400f25 <phase_2+0x29> 400f20: e8 15 05 00 00 callq 40143a <explode_bomb> 400f25: 48 83 c3 04 add $0x4,%rbx 400f29: 48 39 eb cmp %rbp,%rbx 400f2c: 75 e9 jne 400f17 <phase_2+0x1b> 400f2e: be 0c jmp 400f3c <phase_2+0x40> 400f30: 48 8d 5c 24 04 lea 0x4(%rsp),%rbx 400f35: 48 8d 6c 24 18 lea 0x18(%rsp),%rbp 400f3a: be db jmp 400f17 <phase_2+0x1b> 400f3c: 48 83 c4 28 add $0x28,%rsp 400f40: 5b pop %rbx 400f41: 5d pop %rbp 400f42: c3 retq
This function calls two functions. One is read_six_numbers, the other is explode_bomb. We also need to know how “read_six_numbers()” works.
000000000040145c <read_six_numbers>: 40145c: 48 83 ec 18 sub $0x18,%rsp 401460: 48 89 f2 mov %rsi,%rdx 401463: 48 8d 4e 04 lea 0x4(%rsi),%rcx 401467: 48 8d 46 14 lea 0x14(%rsi),%rax 40146b: 48 89 44 24 08 mov %rax,0x8(%rsp) 401470: 48 8d 46 10 lea 0x10(%rsi),%rax 401474: 48 89 04 24 mov %rax,(%rsp) 401478: 4c 8d 4e 0c lea 0xc(%rsi),%r9 40147c: 4c 8d 46 08 lea 0x8(%rsi),%r8 401480: be c3 25 40 00 mov $0x4025c3,%esi 401485: b8 00 00 00 00 mov $0x0,%eax 40148a: e8 61 f7 ff ff callq 400bf0 <__isoc99_sscanf@plt> 40148f: 83 f8 05 cmp $0x5,%eax 401492: 7f 05 jg 401499 <read_six_numbers+0x3d> 401494: e8 a1 ff ff ff callq 40143a <explode_bomb> 401499: 48 83 c4 18 add $0x18,%rsp 40149d: c3 retq
It calls “scanf()” and gets 6 numbers. If it gets less than 6 numbers, it will call “explode_bomb()”. So come back to “phase_2”. To avoid exploding the bomb, (%rsp) must be 1. Then it jumps to “400f30”. Since this function uses %rsp, it means that it uses the stack to store these 6 numbers.
Then we analyze the rest of the phase_2.
%rbx=0x4+%rsp =4+%rsp
%rbp=0x18+%rsp=24+%rsp
Then it jumps to 400f17.
400f17:
%eax=(%rbx-4)
%eax*=2
compare %eax with (%rbx)
if equal, to 400f25(skip explode_bomb)
else bomb!!!!
%rbx-=4
compare %rbx with %rbp
if equal, return
else back to 400f17
So far, we can find that this is a loop structure! %rsp can not only store the address of these 6 numbers but also be the counter of the loop. And the %eax is a temporary variable. It uses %eax, and %rbx to test whether the latter number is twice the number. And we have already known the first number is 1. So, our input is 1,2,4,8,16,32. Let’s try!

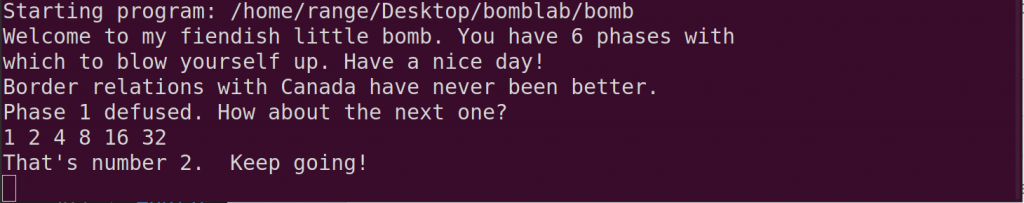

Yes! We are right! Keep going!
The key of phase 1: Border relations with Canada have never been better.
The key of phase 2: 1 2 4 8 16 32
Bye!
